Barrier Type Terminal Blocks

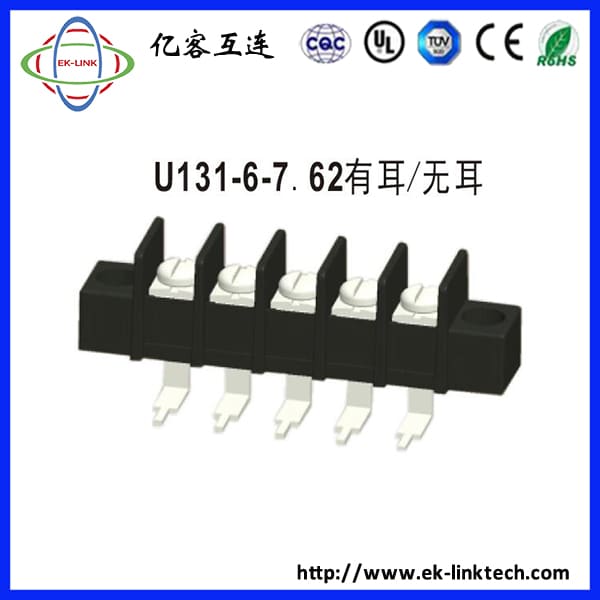

U131-6-7.62 series With &Without flange Pitch7.62mm Barrier Type Terminal Blocks

Item No.:U131-6-7.62
Pitch:7.62mm
Poles: 2P to 28P
Brand:EK-LINK
Product description: In structure, they comprise PCB type, closed barrier type and pluggable type, cross-sections: 0.5mm2-6mm2, Pitch:6.35mm~16mm. with cover type and no cover type. This series is widely used in power sou
INQUIRY

Hangzhou EK-Link Technology Co.,Ltd was devoted to one-stop services from the products design, research and development, production and sale of various connectors, like PCB fixed type terminal block,pluggable terminal block connector, spring terminal connector ,female header, pin header,screw terminal connector,din rail terminal blocks, electrical terminal block,auto connectors, various of power adapters and so on.

1) We are one professional wire harness and connector manufacturer. Our products can be used in household appliance, industrial control, communication field, automotive and motorcycle wiring.

2) We are producing more than 1000 kinds of terminal blocks for Phoenix contact/Wago/weidmuller/Dinkle/TYCO/AMP/ FCI replacements

3) We accept OEM/ODM design, welcome any customized cable too, whenever you have 100pcs or 100K pcs demand, we will reply and quote you as soon as possible.

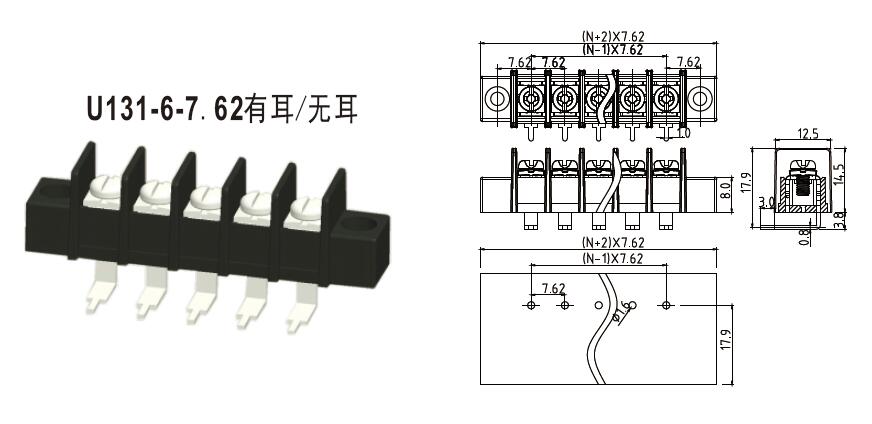

U131-6-7.62 series With &Without flange Pitch 7.62mm Barrier Type Terminal Blocks

Specifications

Pitch:	7.62mm
Poles:	2P to 28P
Electrical:	UL
Voltage rating :	250V
Current rating:	15A
Solid Wire(AWG):	16-22
Torque:	6kgf.cm/M3.0
Operating Temperature:	- 40°C to +105°C
With standing Voltage:	2500VAC
Wire strip length :	NA

Our Advantages:

1.Professional manufacturer, 100% tested.

2.Customers solutions in days, not weeks.

3. Warmly services with careful attentions.
4.Can provide your specific inquiry within 24 hours.

5.Save much costs, bring more benefit for customer to expand business.

If you can't find the exact product you need in the pictures,please don't go away.Just contact me freely or send your sample and drawing to us.We will reply you as soon as possible.
