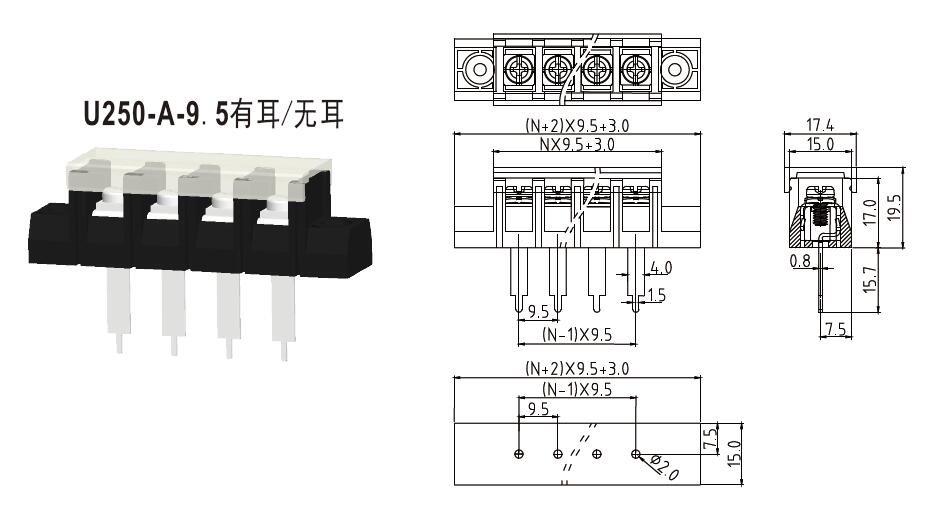

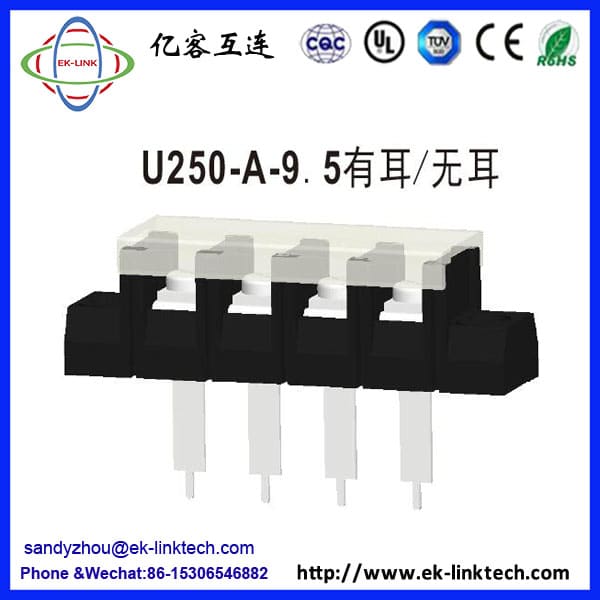

Barrier Type Terminal Blocks

U250-A-9.5 With &Without flange U.S style PCB Electric wire Terminal Block/ Connector Barrier type UL CE TUV

Item No.:U250-A-9.5
Pitch:9.5mm
Poles: 2P to 28P
Brand:EK-LINK
Product description: In structure, they comprise PCB type, closed barrier type and pluggable type, cross-sections: 0.5mm2-6mm2, Pitch:6.35mm~16mm. with cover type and no cover type. This series is widely used in power sou
INQUIRY

Hangzhou EK-Link Technology Co.,Ltd was devoted to one-stop services from the products design, research and development, production and sale of various terminal block connectors and stamping metal parts, like PCB fixed type terminal block, pluggable type, barrier type ,female header, pin header, auto connectors, brass terminals, nonstandard fastener parts, stamping parts and so on. Most of our products have received UL certification and are widely used in many areas such as control and industrial automation, power and energy, security and surveillance, transportation, elevator, lighting as well as home appliances.

1) We are one professional wire harness and connector manufacturer. Our products can be used in household appliance, industrial control, communication field, automotive and motorcycle wiring.

2) We are producing more than 1000 kinds of terminal blocks for Phoenix contact/Wago/weidmuller/Dinkle/TYCO/AMP/ FCI replacements

3) We accept OEM/ODM design, welcome any customized cable too, whenever you have 100pcs or 100K pcs demand, we will reply and quote you as soon as possible.

U250-A-9.5 With &Without flange U.S style PCB Electric wire Terminal Block/ Connector Barrier type UL CE TUV

Specifications

Pitch:	9.5mm
Poles:	2P to 24P
Electrical:	UL
Voltage rating :	300V
Current rating:	20A
Solid Wire(AWG):	14-22
Torque:	12kgf.cm/M3.5
Operating Temperature:	- 40°C to +105°C
With standing Voltage:	2500VAC
Wire strip length :	NA

Our Advantages:

1.Professional manufacturer, 100% tested.

2.Customers solutions in days, not weeks.

3. Warmly services with careful attentions.
4.Can provide your specific inquiry within 24 hours.

5.Save much costs, bring more benefit for customer to expand business.

If you can't find the exact product you need in the pictures,please don't go away.Just contact me freely or send your sample and drawing to us.We will reply you as soon as possible.
